175-LWIBP Commercial Bypass

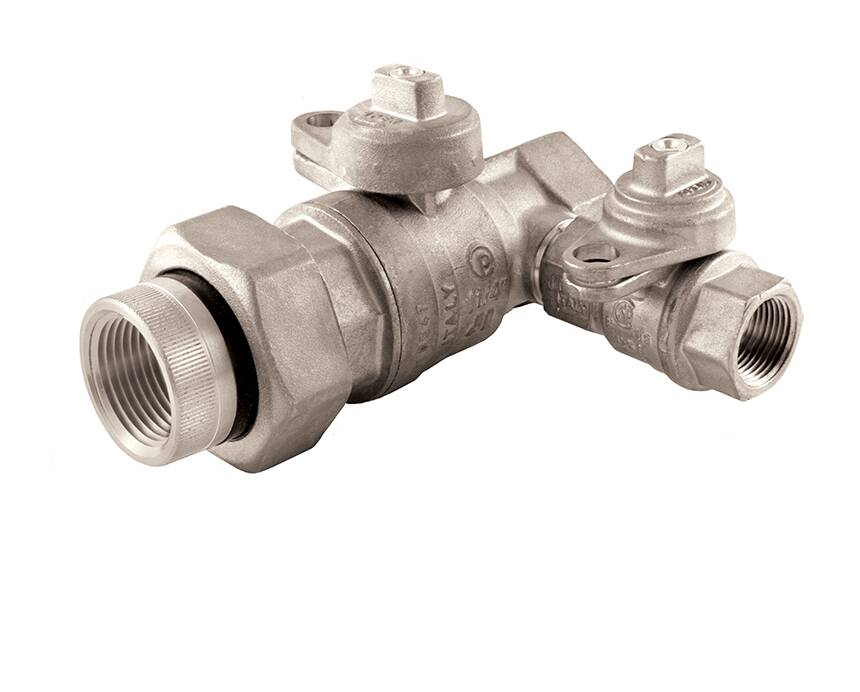

175-LWIBP Commercial Bypass - Image 2

175-LWIBP Commercial Bypass

Utility Gas Ball Valve, Full Port, Service Bypass, Insulated Tailpiece, 175 PSIG

Features

Tamper Resistant Lockwing Cap
2 FKM O-Rings
3/4” Bypass Valve
Full Port Design to Accommodate Industry Leading Stop Changers
Lockwing Accommodates Standard Barrel Locks
Maintenance Free Design
100% Leak Tested
100% Made in Italy
Leakproof Stem – Lifetime Warranty

Specification Sheet

Description

Shipping Info

Part No.	Size	Case	Carton	Weight (lbs)
243-104T	3/4″	8	1	27
243-006D	1-1/4″	8	2	47
243-006T	1-1/4″	8	2	47
243-008T	2″	2	1	25

(D) Brass, (T) T.E.A. Coated

Certifications

MSS SP-110

Meets or Exceeds Applicable Part of DOT 192; Threads conform to ANSI B1.20.3

Resources

Video: Natural Gas Bypass Valves
