175-LWBP Commercial Bypass

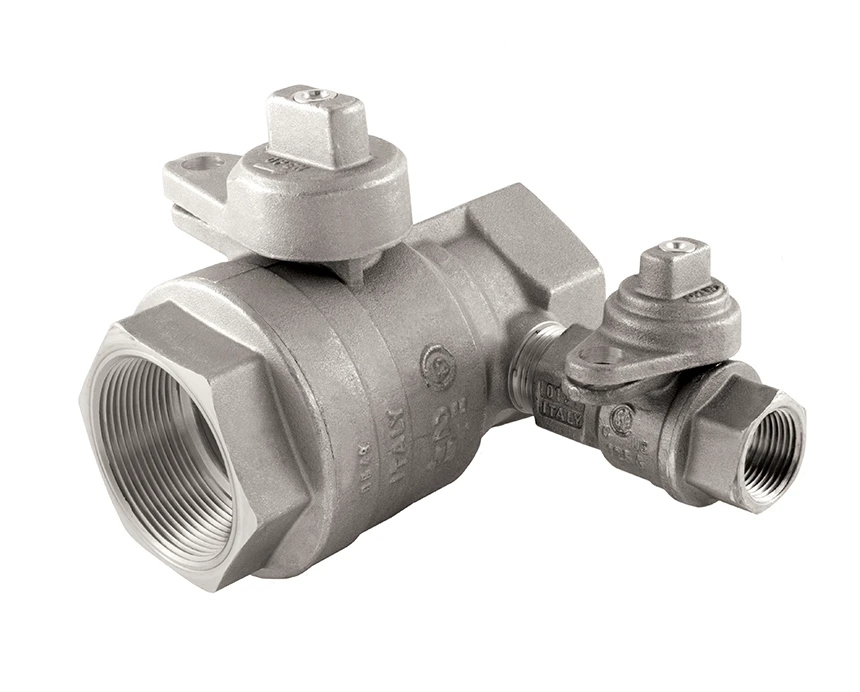

175-LWBP Commercial Bypass - Image 2

175-LWBP Commercial Bypass

Utility Gas Ball Valve, Full Port, Service Bypass, 175 PSIG

Features

Tamper Resistant Lockwing Cap
2 FKM O-Rings
3/4” Bypass Valve
Full Port Design to Accommodate
Industry Leading Stop Changers
Lockwing Accommodates Standard Barrel Locks
Maintenance Free Design
100% Leak Tested
100% Made in Italy
Leakproof Stem – Lifetime Warranty

Specification Sheet

Description

Shipping Info

Part No.	Size	Case	Carton	Weight (lbs)
244-006B	1-1/4″	8	2	36
244-007B	1-1/2″	4	2	45
244-008B	2″	6	1	48
244-008T	2″	6	1	48

(B) Brass, (T) T.E.A. Coated

Certifications

MSS SP-110

Meets or Exceeds Applicable Part of DOT 192; Threads Conform to ANSI B1.20.3

Resources

Video: Natural Gas Bypass Valves
