BFV-Lug

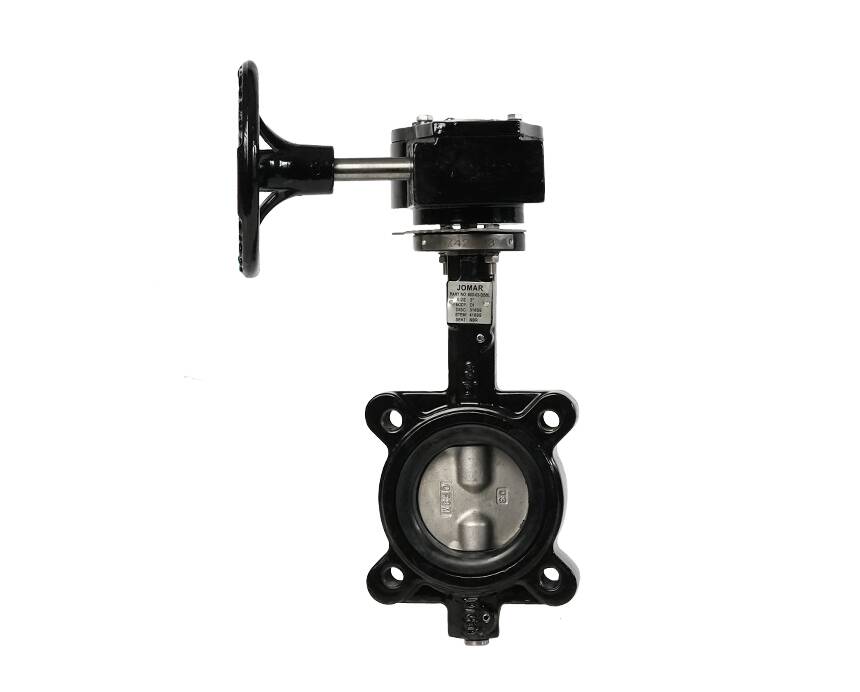

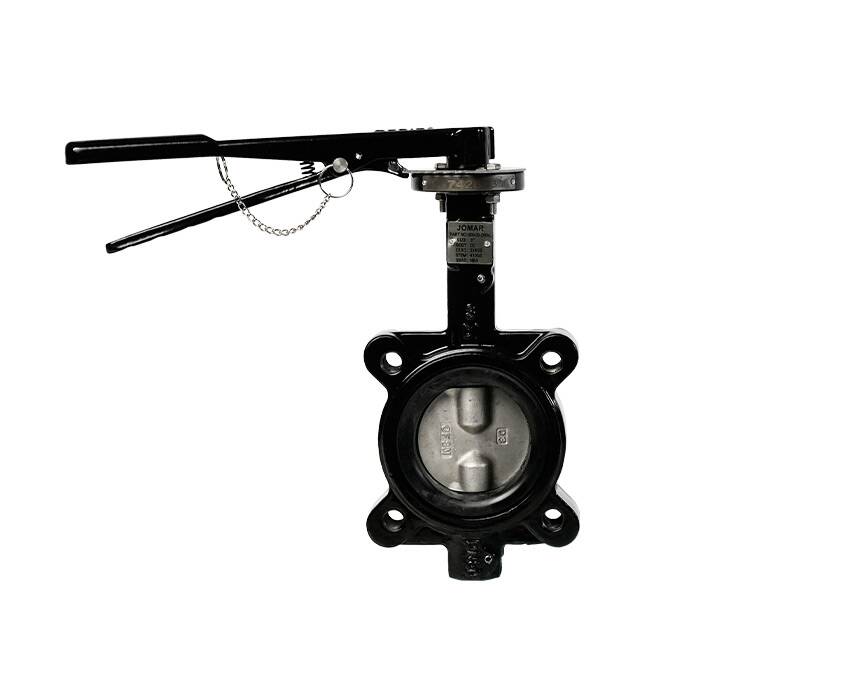

Butterfly Valve, Lug Style, Epoxy-Coated Ductile Iron Body, Stainless Steel Disc
Features
- Epoxy-Coated Finish
- NSF EPDM, PTFE, Buna-N, Viton®, or Non-NSF EPDM Seats Available
- Square Stem for Direct Mount
- Ideal for Mounting Pneumatic and Electrical Actuators
- Easily Accepts Actuator with ISO 5211 Mounting Flange
- Seat-to-Flange Seal Eliminates Need for Flange Gaskets
- Designed for Commercial, Industrial and Potable Water Applications up to 225 PSI
- Bidirectional for Dead End Service
- NSF 61 & NSF 372 Certified: 2″-24″ (NSF EPDM Seat Only)
- Meets API 609 & MSS SP-67
- Wetted Surfaces Contain Less than .25% Lead Content
