T-SS-2000N-DH
T-SS-2000N-DH - Image 2

Share This Product

T-SS-2000N-DH

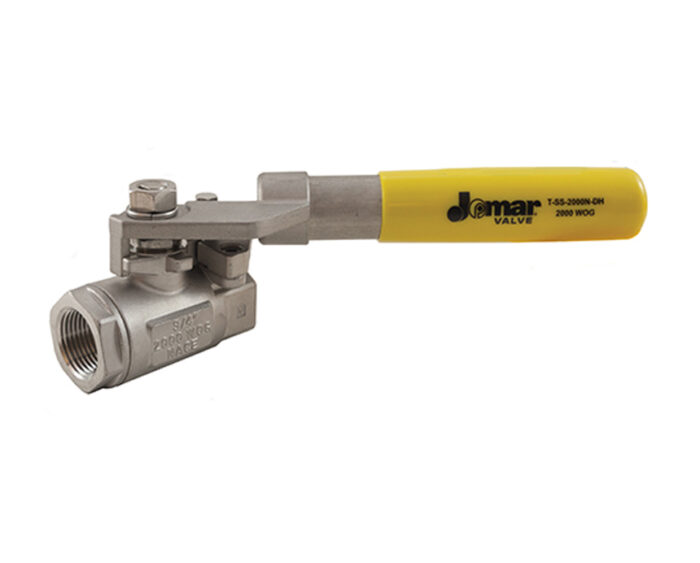

Stainless Steel Ball Valve, 2 Piece, Standard Port, Threaded Connection, Spring Return Handle, 2000 WOG

Features
  • Solid Ball Construction
  • Fail Safe Position

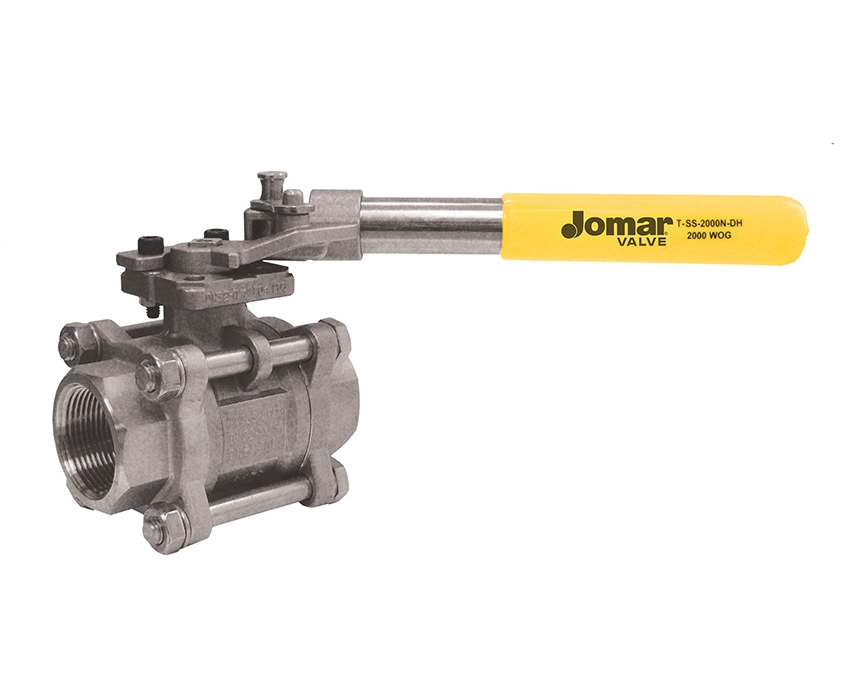

  • 1-1/4” – 2”: 3 Piece, 4 Bolt Pattern
  • 100% Leak Tested
  • 29 in-Hg Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content





Part No. Size Carton Weight (lbs)
100-931-DH 1/4″ 10 13
100-932-DH 3/8″ 10 13
100-933-DH 1/2″ 10 14
100-934-DH 3/4″ 8 17
100-935-DH 1″ 8 22
100-936-DH 1-1/4″ 1 3
100-937-DH 1-1/2″ 1 4
100-938-DH 2″ 1 5
  • UL Listed (1/4″ – 2″)
    • MHKZ – Manual Valves
    • YQNZ – Compressed Gas Shut-Off Valves
    • YRBX – Flammable Liquid Shut-Off Valves
    • YRPV – Gas Shut-Off Valves
    • YSDT – LP Gas Shut-Off Valves
    • YQAR – Anhydrous Ammonia Shut-Off Valves
  • MSS SP-110
  • ANSI B1.20.1
  • Buy American Act Compliant
