T-SS-1000N-4B

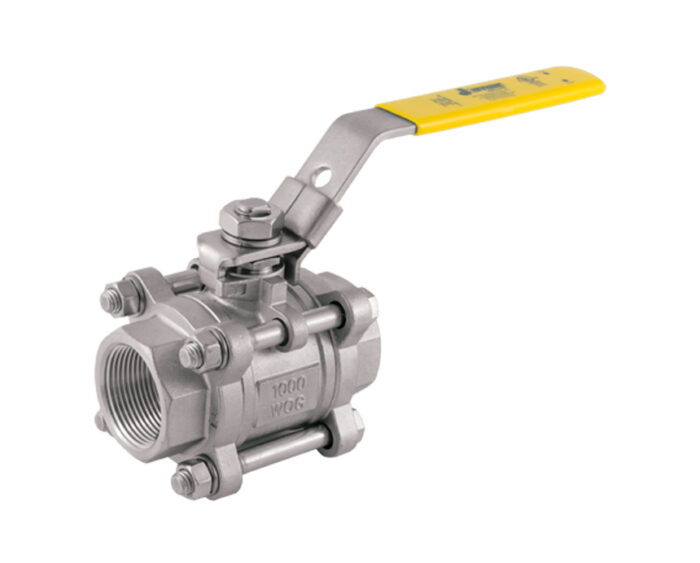

Stainless Steel Ball Valve, 3 Piece 4 Bolt, Swing Out Body, Full Port, Threaded Connection, Stainless Steel Trim, 1000 WOG

Features
  • Latch Lock Handle May be Locked in Open or Closed Position
  • 100% Leak Tested
  • 29 in-HG Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Repair Kits Available





Part No. Size Carton Weight (lbs)
500-301 1/4″ 10 10
500-302 3/8″ 10 10
500-303 1/2″ 10 14
500-304 3/4″ 10 21
500-305 1″ 8 25
500-306 1-1/4″ 5 23
500-307 1-1/2″ 5 34
500-308 2″ 2 21
500-310 3″ 2 58
500-311 4″ 1 45
NPT with PORT TAP
501-308 2″ 2 23
NPT x SQUARE FLANGE
500-358 2″ 2 26
NPT x SQUARE FLANGE, with PORT TAP
501-358 2″ 2 28
SQUARE FLANGE x SQUARE FLANGE
500-368 2″ 2 32
  • UL Listed (1/4″ – 2″)
    • MHKZ – Manual Valves
    • YQNZ – Compressed Gas Shut-Off Valves
    • YRBX – Flammable Liquid Shut-Off Valves
    • YRPV – Gas Shut-Off Valves
    • YSDT – LP Gas Shut-Off Valves
    • YQAR – Anhydrous Ammonia Shut-Off Valves
  • MSS SP-110
  • NACE Certified
  • ANSI B1.20.1
  • ANSI B16.11
  • Conforms to API 598
  • Buy American Act Compliant
