FL-SS-100-300

Share This Product

FL-SS-100-300

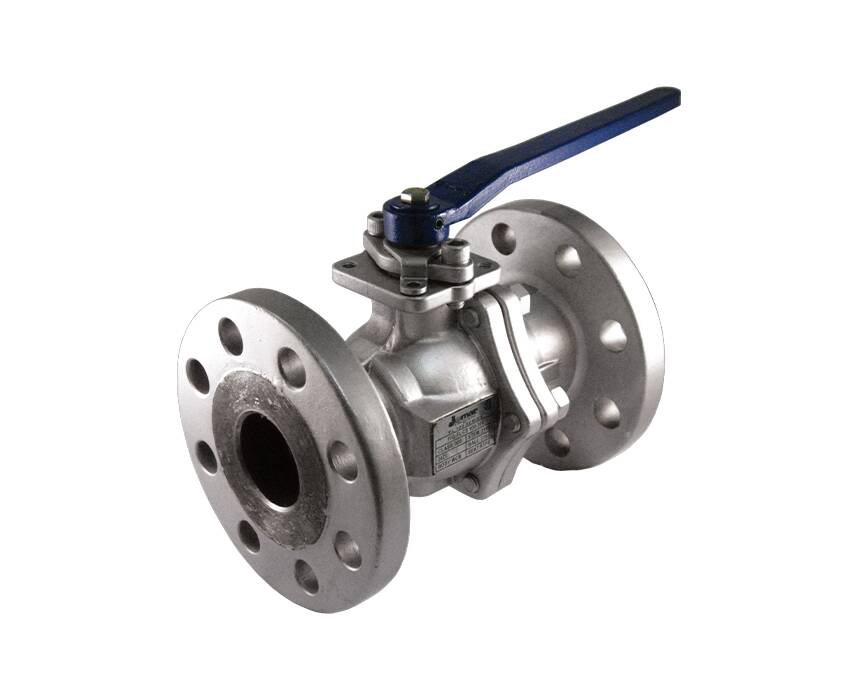

Stainless Steel Ball Valve, 2 Piece, Full Port, Flanged Connection, 300 Class

Features
  • Raised Face Flange
  • Wrench Operator
  • Locking Device Comes Standard
  • Fire Safe Stem and Body Graphite Seals
  • Air Tested Seat Leakage: 85 PSI
  • Hydraulic Tested Body: 1124 PSI
  • 100% Leak Tested
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Repair Kits Available





Part No. Size Carton Weight (lbs)
600-128 2″ 1 28
600-130 3″ 1 62
600-131 4″ 1 106
600-132 6″ 1 225
600-133 8″ 1 404
  • CSA Certified
    • ASME B16.33 (125 PSIG) (2″)
    • ASME B16.38 (125PSIG) (3″ – 8″)
    • CSA 3.16-15 (125 PSI) (2″ – 8″)
  • Conforms to ANSI B16.34
  • Flange: ANSI B16.5
  • Face-to-Face: ANSI B16.10
  • API 607 Fire Safe
  • Buy American Act Compliant
