S-100CSSG

Share This Product

S-100CSSG

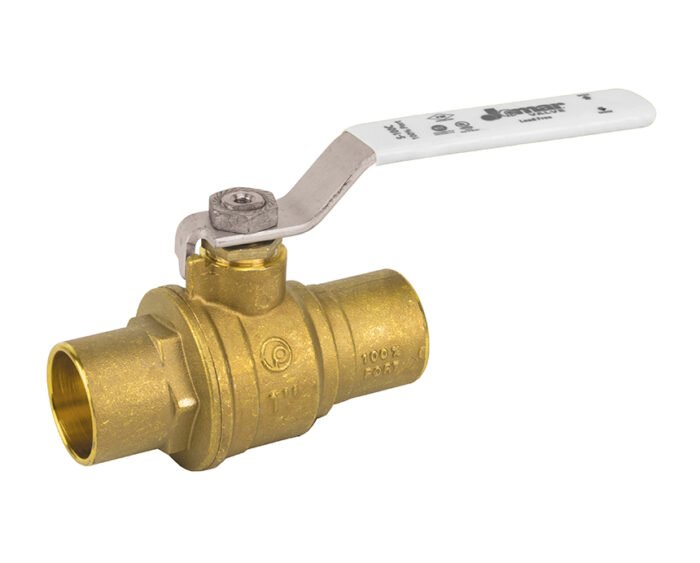

Lead Free Brass Ball Valve, 2 Piece, Full Port, Solder Connection, Stainless Steel Trim, 600 WOG

Features
  • Dezincification Resistant Brass Alloy
  • Stainless Steel Trim
  • Triple Sealing Stem with 2 FKM O-Rings and Second Generation PTFE Seats
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • 100% Made in Italy
  • Leakproof Stem – Lifetime Warranty
  • 29 in-HG Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Accessories Available





Part No. Size Case Carton Weight (lbs)
100-413SSG 1/2″ 120 12 51
100-414SSG 3/4″ 72 12 57
100-415SSG 1″ 36 6 47
100-416SSG 1-1/4″ 24 4 47
100-417SSG 1-1/2″ 16 2 53
100-418SSG 2″ 12 2 63
  • UL Listed (1/2″ – 2″)
    • VQGU – Trim & drain (US only)
  • NSF
    • NSF 372
    • NSF 61-8
    • NSF 61 – Annex G
  • ASME/ANSI B16.18
