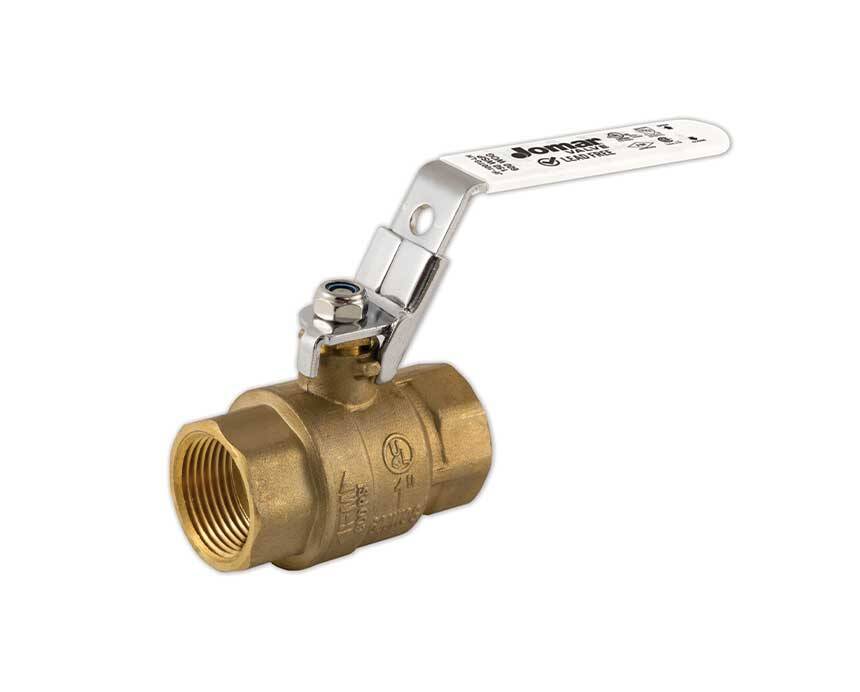

JF-100TG-LH

Lead Free Brass Ball Valve, 2 Piece, Full Port, Threaded Connection, Stainless Steel Trim, Locking Handle, 600 WOG

Features
  • Dezincification Resistant Brass Alloy
  • Gland Follower and Single O-Ring Stem Design
  • Stainless Steel Ball and Stem
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • IAPMO Certified – NSF 61 / NSF 372 Certified
  • Leakproof Stem – Lifetime Warranty
  • 29 in-HG Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content





Part No. Size Case Carton Weight (lbs)
100-101SSG-LH 1/4″ 120 10 40
100-102SSG-LH 3/8″ 120 10 40
100-103SSG-LH 1/2″ 100 10 50
100-104SSG-LH 3/4″ 80 10 67
100-105SSG-LH 1″ 48 8 62
100-106SSG-LH 1-1/4″ 36 4 68
100-107SSG-LH 1-1/2″ 24 2 61
100-108SSG-LH 2″ 12 3 44
100-109SSG-LH 2-1/2″ 6 1 49
100-110SSG-LH 3″ 6 1 69
100-111SSG-LH 4″ 2 1 40
  • UL Listed up to 600 PSIG (1/4″ – 1″), 300 PSIG (1-1/4″ – 2″), 250 PSIG (2-1/2″ – 4″)
    • MHKZ – Manual valves
    • YRPV – Gas shut-off valves
    • YQNZ – Compressed gas shutoff valves
    • YRBX – Flammable liquid shutoff valves
    • YSDT – LP gas shutoff valves
  • IAPMO Certified (1/4″ – 4″)
    • NSF/ANSI/CAN 61-8 2018
    • NSF/ANSI 372-2016
    • IAPMO/ANSI Z1157-2014
    • NSF/ANSI 14-2014
  • CSA Certified
    • CGA 3.16 (125 PSIG) (1/4″ – 2″)
    • ANSI Z21.15 (.5 PSIG) (1/4″ – 2″)
    • CGA CR91 (5 PSIG) (1/4″ – 2″)
    • ASME B16.44 (5 PSIG) (1/4″ – 2″)
    • ASME B16.33 (125 PSIG) (1/2″ – 2″)
  • MSS SP-110
  • ANSI B1.20.1
