JF-100SG

Share This Product

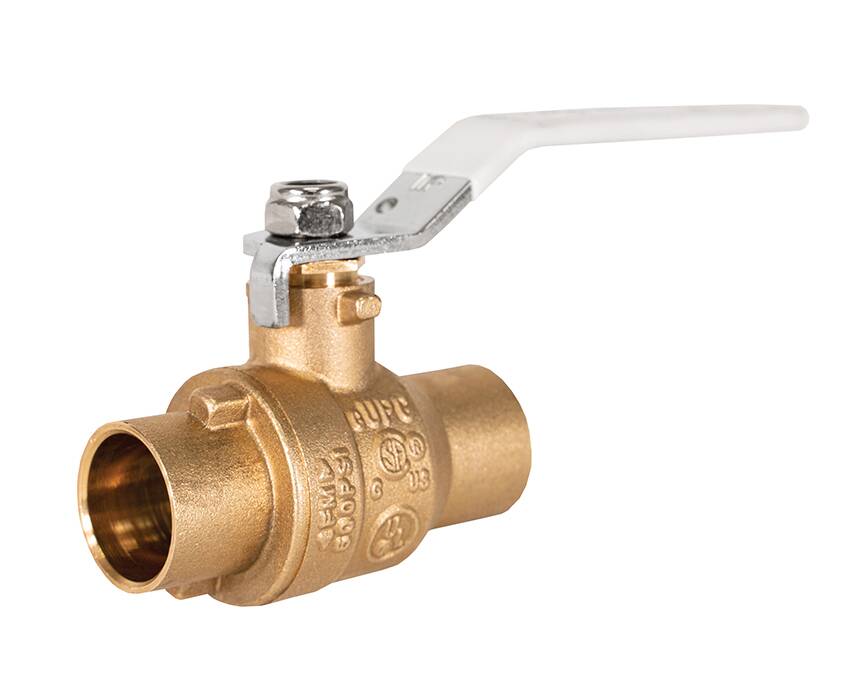

JF-100SG

Lead Free Brass Ball Valve, 2 Piece, Full Port, Solder Connection, Stainless Steel Trim, 600 WOG

Features
  • Dezincification Resistant Brass Alloy
  • Gland Follower and Single O-Ring Stem Design
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • IAPMO Certified – NSF 61 / NSF 372 Certified
  • Leakproof Stem – Lifetime Warranty
  • Wetted Surfaces Contain Less than .25% Lead Content





Part No. Size Case Carton Weight (lbs)
100-113SSG 1/2″ 100 10 43
100-114SSG 3/4″ 80 10 58
100-115SSG 1″ 48 8 53
100-116SSG 1-1/4″ 36 4 69
100-117SSG 1-1/2″ 24 2 57
100-118SSG 2″ 12 3 46
100-119SSG 2-1/2″ 6 1 44
100-120SSG 3″ 6 1 55
100-121SSG 4″ 2 1 35
  • UL Listed up to 175 PSI (1/2″ – 2″)
    • MHKZ – Manual valves
    • YRPV – Gas shut-off valves
  • IAPMO Certified
    • NSF 61-8
    • NSF 372
    • Uniform Plumbing Code (cUPC)
      • IAPMO/ANSI Z1157-2014
      • NSF/ANSI 14-2014
  • MSS SP-110
  • ASME/ANSI B16.18
