C-402G
C-402G - Image 2

Share This Product

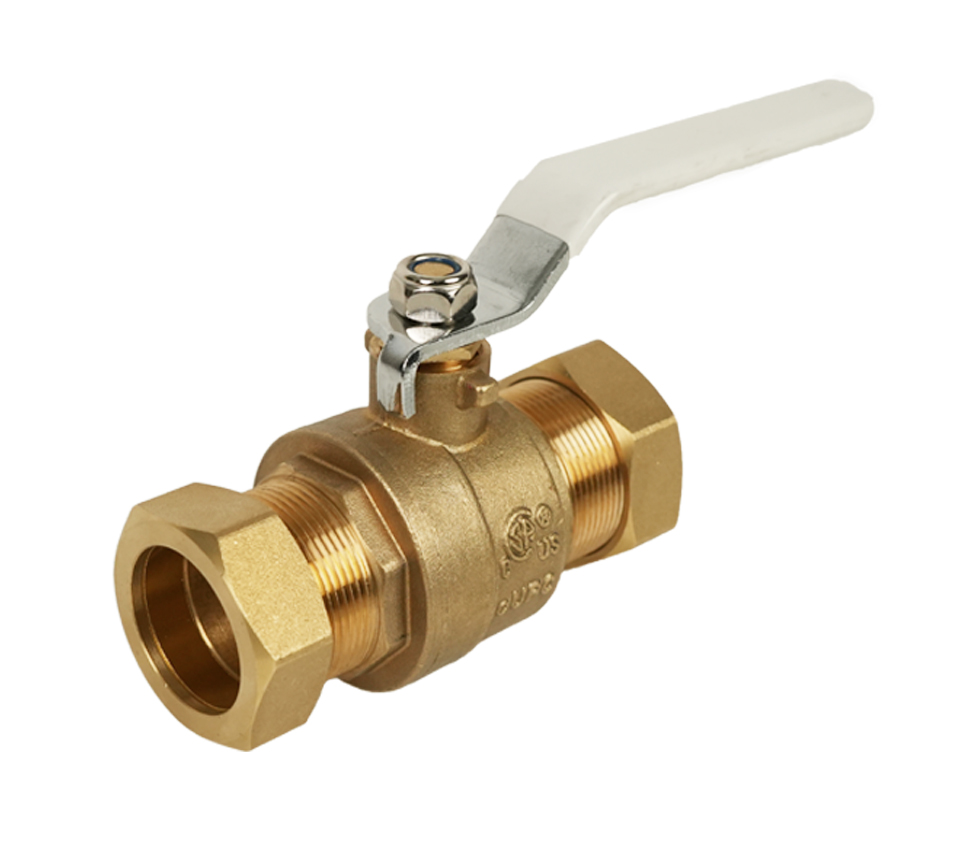

C-402G

Lead Free Brass Ball Valve, 2 Piece, Full Port, Compression Connection, Stainless Steel Trim with Drain, 600 WOG

Features
  • Dezincification Resistant Brass Alloy
  • Gland Follower and Single O-Ring Stem Design
  • Drain Prevents Freeze-Up
  • Eliminates Seat Damage During Soldering
  • Compression Ends Ease Maintenance
  • Blow-Out Proof Stem
  • 100% Leak Tested
  • Wetted Surfaces Contain Less than .25% Lead Content





Part No. Size Case Carton Weight (lbs)
102-653G 1/2″ 100 10 60
102-654G 3/4″ 80 10 61
102-655G 1″ 48 6 71
102-663G 1/2″ 100 10 60
102-664G 3/4″ 80 10 61
102-665G 1″ 48 8 71
  • IAPMO Certified
    • NSF/ANSI 372-2020
    • NSF/ANSI/CAN 61-2019
    • Uniform Plumbing Code (cUPC) (1/2″ – 2″)
      • IAPMO/ANSI Z1157-2014e1 (R2019)
      • NSF/ANSI 14-2018
