T-205
T-205 - Image 2

Share This Product

T-205

Gas Ball Valve, 2 Piece, Threaded Connection, 400 WOG

Features
  • Valve Can be Locked in Closed Position by Reversing Handle
  • Triple Sealing Stem with 2 FKM O-Rings and Teflon® Seal
  • 100% Leak Tested
  • 100% Made in Italy
  • Leakproof Stem – Lifetime Warranty





Part No. Size Case Carton Weight (lbs)
Red T-Handle
102-503 1/2″ 140 14 60
102-504 3/4″ 60 10 59
102-505 1″ 60 10 57

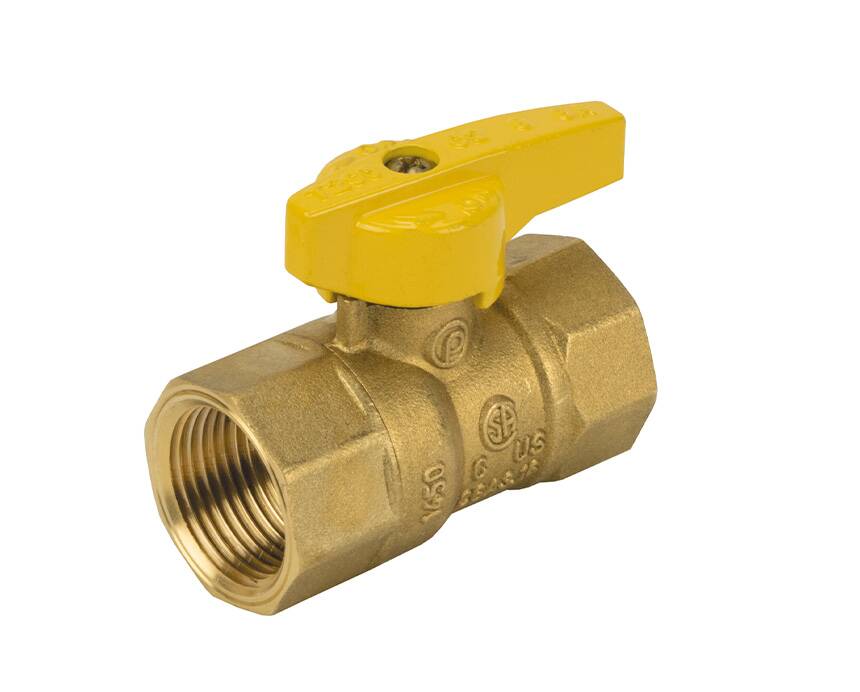

Yellow Teardrop Handle
102-513 1/2″ 120 12 49
102-514 3/4″ 100 10 58
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG)
    • CGA 3.16 (125 PSIG)
  • ANSI B1.20
  • MSS SP-110
  • Buy American Act Compliant
