T-204

Gas Ball Valve, 2 Piece, 600 WOG

Features

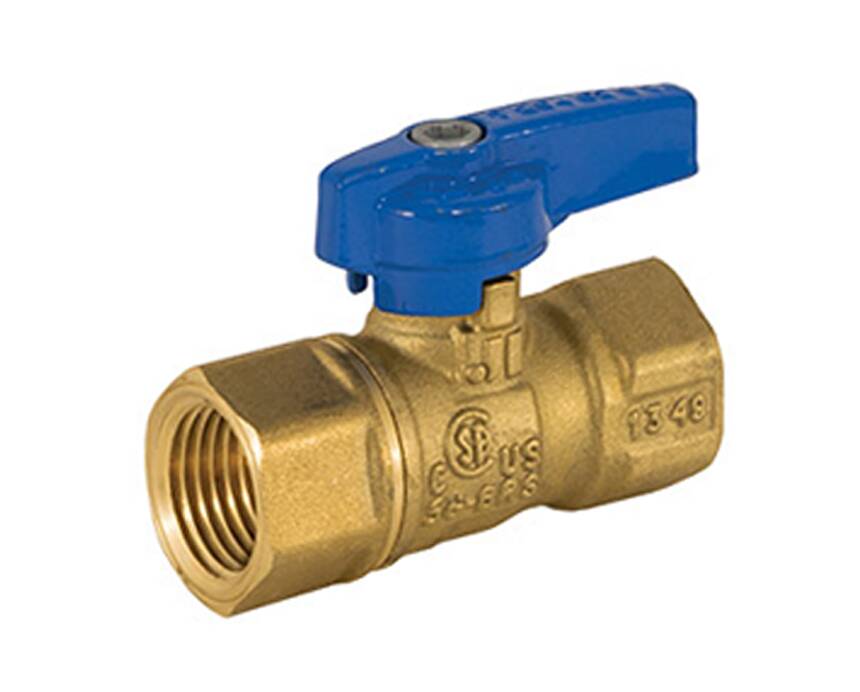

  • T-Handle and Teardrop Handle Available on Most Configurations
  • Valve Can be Locked in Closed Position by Reversing Handle
  • 2 NBR O-Rings
  • 100% Leak Tested
  • 100% Made in Italy
  • Leakproof Stem – Lifetime Warranty
  • Use Model T-100NE for Sizes Above 3/4″



T-Handle Teardrop Size Case Carton Weight (lbs)

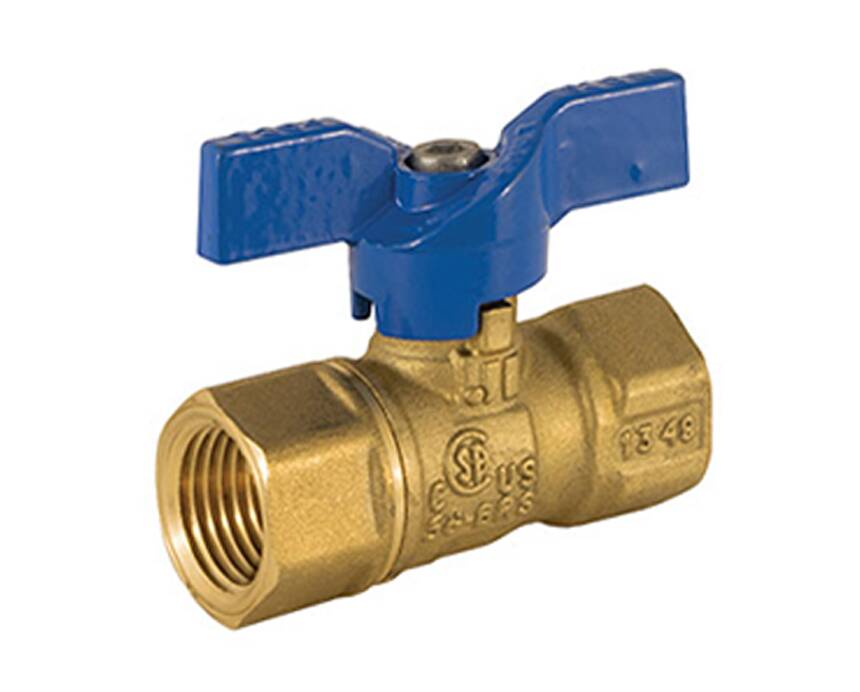

FIP x FIP
101-401 101-411 1/4″ 120 12 44
101-402 101-412 3/8″ 120 12 40
101-403 101-413 1/2″ 48 12 49
101-404 101-414 3/4″ 48 12 67
101-404BRT* — 3/4″ 60 6 52

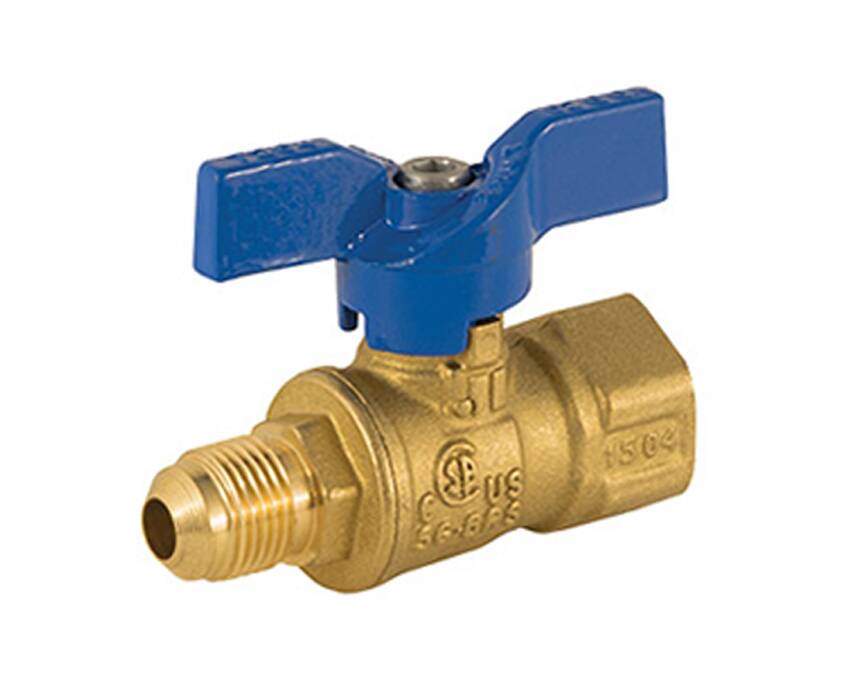

Flare x FIP
101-502 101-512 3/8″ x 1/2″ 140 14 56
101-503 101-513 1/2″ x 1/2″ 140 14 61
101-504 — 5/8″ x 3/4″ 80 8 51

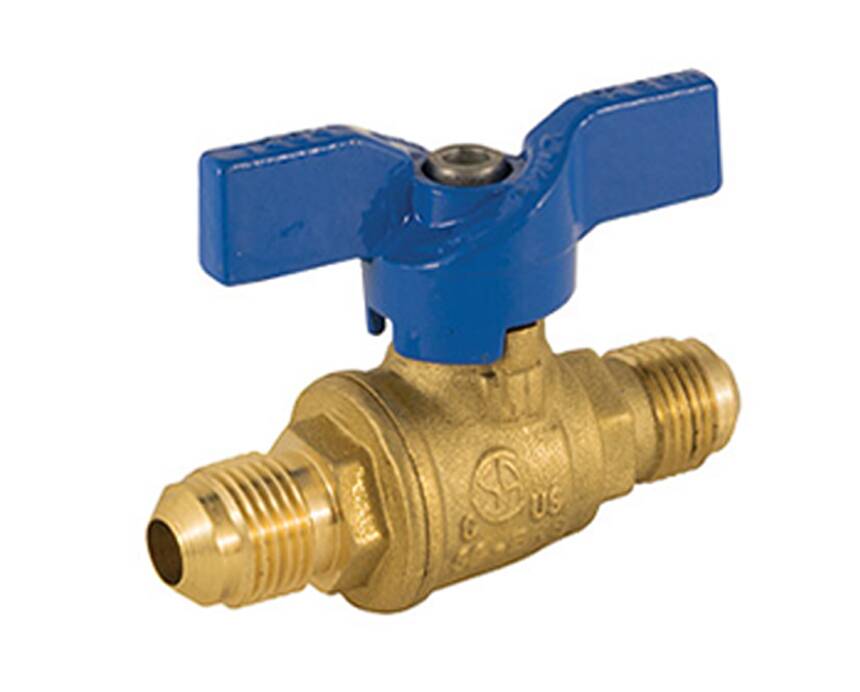

Flare x Flare
101-601 — 1/2″ x 3/8″ 80 20 40
101-602 101-612 3/8″ x 3/8″ 120 12 48
101-603 101-613 1/2″ x 1/2″ 48 12 40
101-604 101-613 5/8″ x 5/8″ 80 8 51
MIP x Flare
101-702 — 1/2″ x 3/8″ 120 12 51
101-703 — 1/2″ x 1/2″ 32 6 52

*Brass T-Handle

  • UL Listed
    • YQNZ – Compressed Gas Shut-Off Valves
    • YRPV – Gas Shut-Off Valves
    • YSDT – LP Gas Shut-Off Valves
    • MHKZ – Manual Valves
    • YRBX – Flammable Liquid Shut-Off Valves
    • SFJQ – Valves, Refrigerant
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG)
    • ASME B16.44 (5 PSIG)
    • CSA 9.4:21 (5 psig) – indoor/outdoor uses
  • ANSI B1.20.1
  • MSS SP-110
  • Buy American Act Compliant
