T-203DU

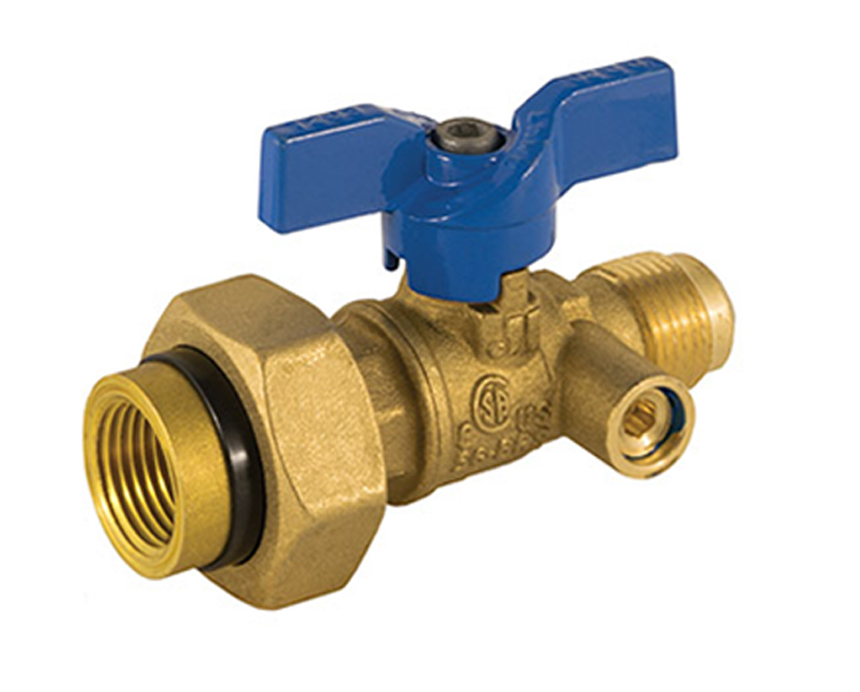

Gas Ball Valve, 2 Piece, Integrated Dielectric Union End, Side Tap, 600 WOG

Features
  • Meets NFPA 58 Dielectric Union Requirement
  • Eliminates Need for Test Tee and Labor to Install
  • Removable Plug Enables Port for Pressure Gauge
  • 1/8″ Side Tap
  • Valve Can be Locked in Closed Position by Reversing Handle
  • 2 NBR O-Rings
  • 100% Leak Tested
  • 100% Made in Italy
  • Leakproof Stem – Lifetime Warranty



Part No. Size Case Carton Weight (lbs)
FIP DU x FIP
102-313DU 1/2″ 60 6 43
102-314DU 3/4″ 40 4 44

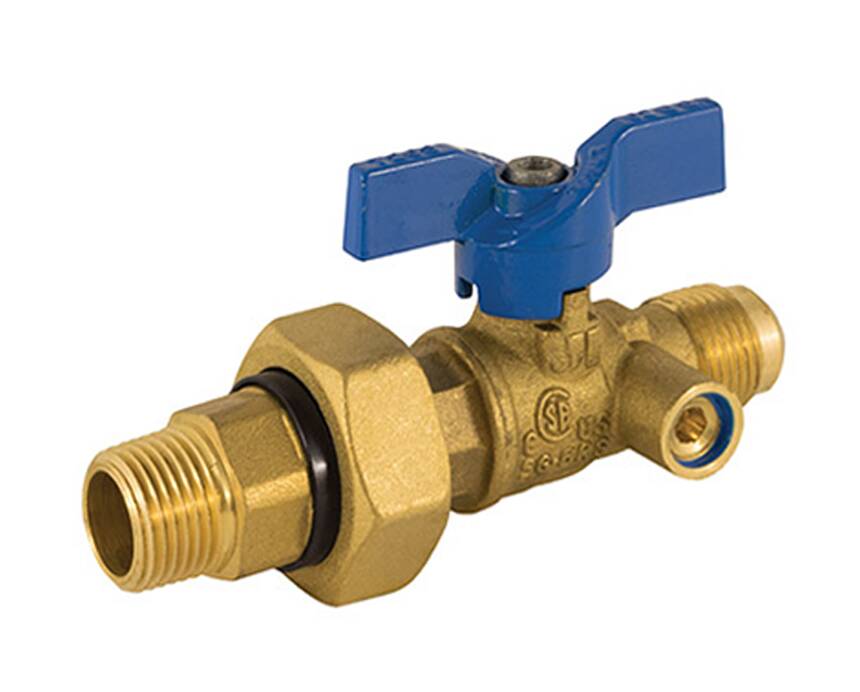

MIP DU x Flare
102-403DU 1/2″ 60 6 48
FIP DU x Flare
102-413DU 1/2″ 60 6 42
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG)
    • ASME B16.44 (5 PSI)
    • CSA 9.4:21 (5 psig) – indoor/outdoor uses
  • ANSI B1.20.1
  • MSS SP-110
  • Meets or Exceeds Applicable Part of UL: YSDT – LP Gas Shut-Off Valves (600 PSI)
  • Buy American Act Compliant
