T-2005C

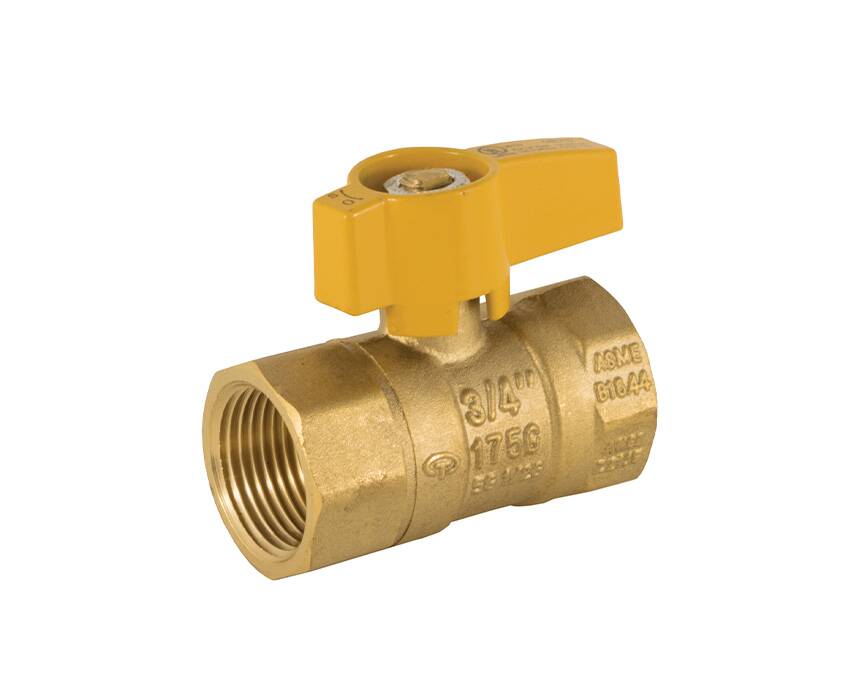

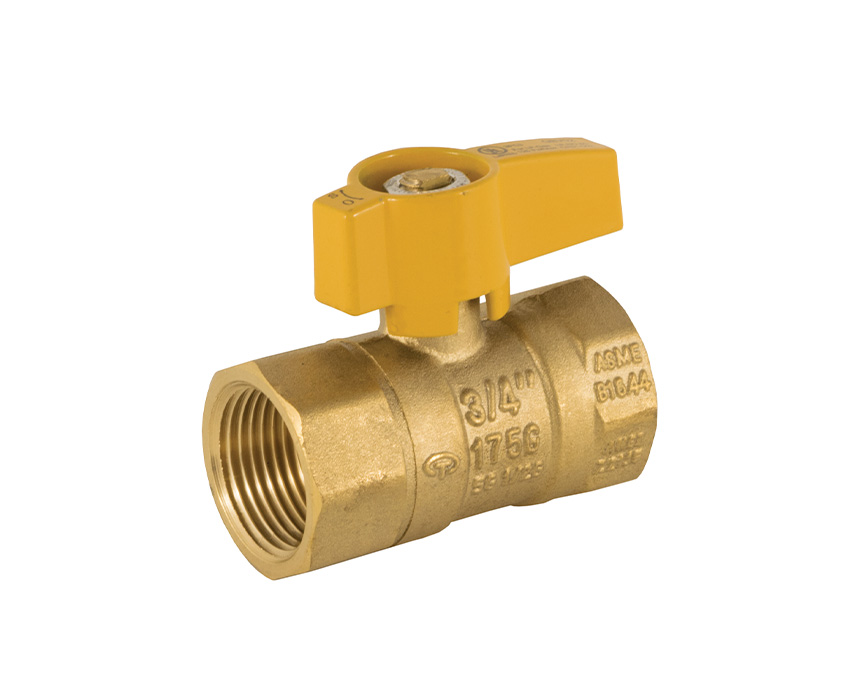

Gas Ball Valve, 2 Piece, Threaded Connection, 175 WOG

Features
  • Valve Can be Locked in Open or Closed Position by Reversing Handle
  • Gland Follower and Single O-Ring Stem Design
  • 100% Leak Tested





Part No. Size Case Carton Weight (lbs)
Yellow Teardrop Handle
102-603 1/2″ 100 10 35
102-604 3/4″ 100 10 52
102-605 1″ 60 6 51
Red Teardrop Handle
102-623 1/2″ 100 10 34
102-624 3/4″ 100 10 48
102-625 1″ 60 6 52
  • UL Listed (1/2″ – 3/4″)
    • YSDT – LP gas shut-off valves
  • CSA Certified
    • CGA 3.16 (125 PSIG)
    • ANSI Z21.15 (.5 PSIG)
    • CGA CR91 (5 PSIG)
    • ASME B16.44 (5 PSIG)
    • ASME B16.33 (125 PSIG)
  • ANSI B1.20.1
