T-2004C
T-2004C - Image 2

Share This Product

T-2004C

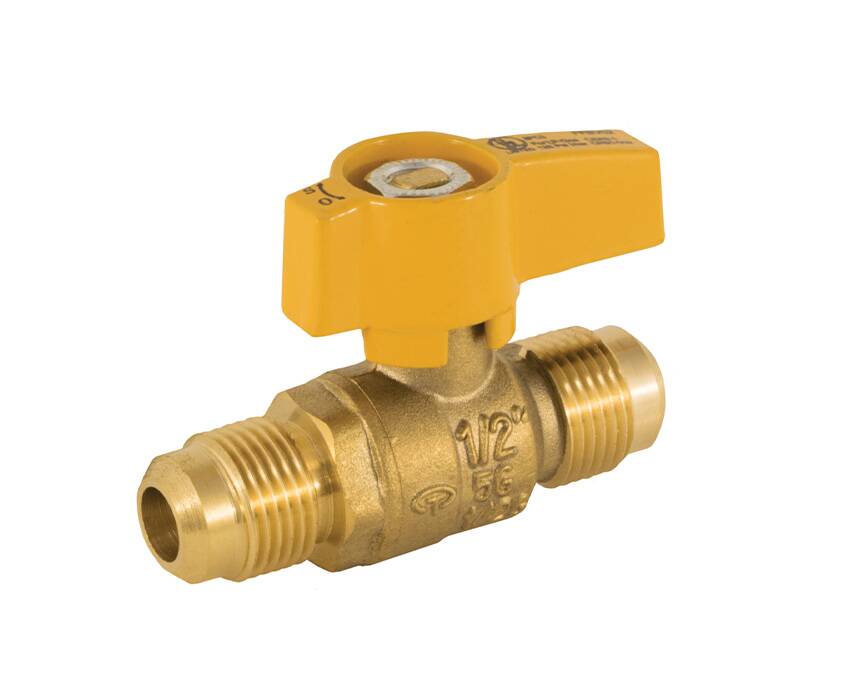

Gas Ball Valve, 2 Piece, Flare Connection, 175 WOG

Features
  • Valve Can be Locked in Open or Closed Position by Reversing Handle
  • Gland Follower and Single O-Ring Stem Design
  • Plastic Caps to Prevent Flare Connection and Threads
  • 100% Leak Tested





Part No. Size Case Carton Weight (lbs)
Flare x Flare
102-612 3/8″ 100 10 31
102-613 1/2″ 100 10 38
102-614 5/8″ 60 10 51
Flare x FIP
102-633 1/2″ 100 10 38
  • UL Listed
    • YSDT – LP Gas Shut-Off Valves
  • CSA Certified
    • ANSI Z21.15 (.5 PSIG) (5/8″)
  • Flare Connection in Accordance with NFPA 54/ANSI Z223.1
