FL-SS-100-150

Share This Product

FL-SS-100-150

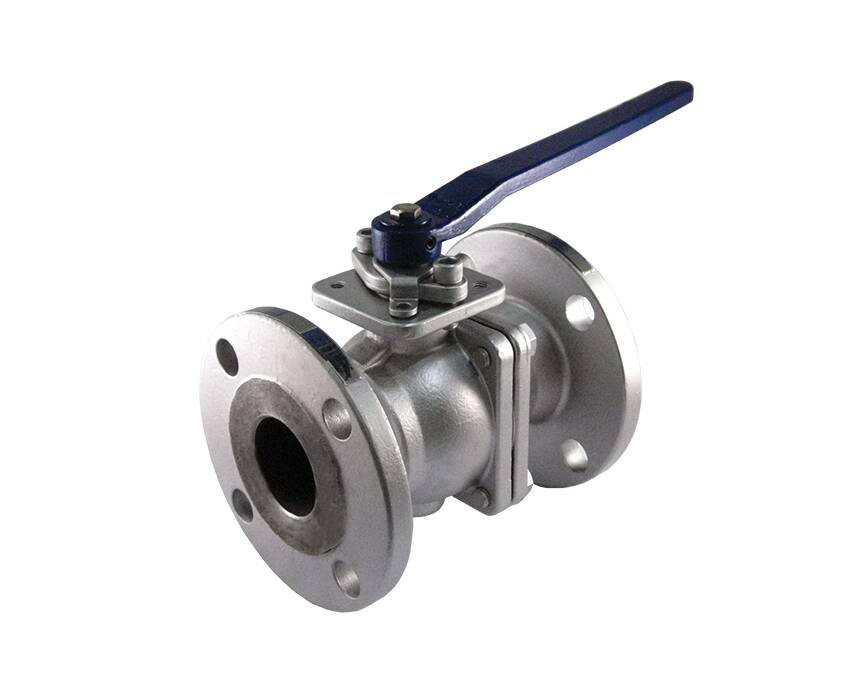

Stainless Steel Ball Valve, 2 Piece, Full Port, Flanged Connection, 150 Class

Features
  • Raised Face Flange
  • Wrench Operator
  • Locking Device Comes Standard
  • Fire Safe Stem and Body Graphite Seals
  • Air Tested Seat Leakage: 85 PSI
  • Hydraulic Tested Body: 427 PSI
  • 100% Leak Tested
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Repair Kits Available





Part No. Size Carton Weight (lbs)
600-103 1/2″ 2 7
600-104 3/4″ 2 9
600-105 1″ 2 14
600-107 1-1/2″ 2 28
600-108 2″ 2 20
600-109 2-1/2″ 1 28
600-110 3″ 1 46
600-111 4″ 1 74
600-112 6″ 1 176
600-113 8″ 1 342
600-114 10″ 1 551
600-115 12″ 1 817
  • UL Listed (1/2″ – 8″)
    • MHKZ – Manual Valves
    • YQNZ – Compressed Gas Shut-Off Valves
    • YRBX – Flammable Liquid Shut-Off Valves
    • YSDT – LP Gas Shut-Off Valves
  • CSA Certified
    • ASME B16.33 (125 PSIG) (2″)
    • ASME B16.38 (125PSIG) (3″ – 8″)
    • CSA 3.16 (125 PSI) (2″ – 8″)
  • Conforms to ANSI B16.34
  • Flange: ANSI B16.5
  • Face-to-Face: ANSI B16.10
  • API 607 Fire Safe
  • Buy American Act Compliant





Featured Products

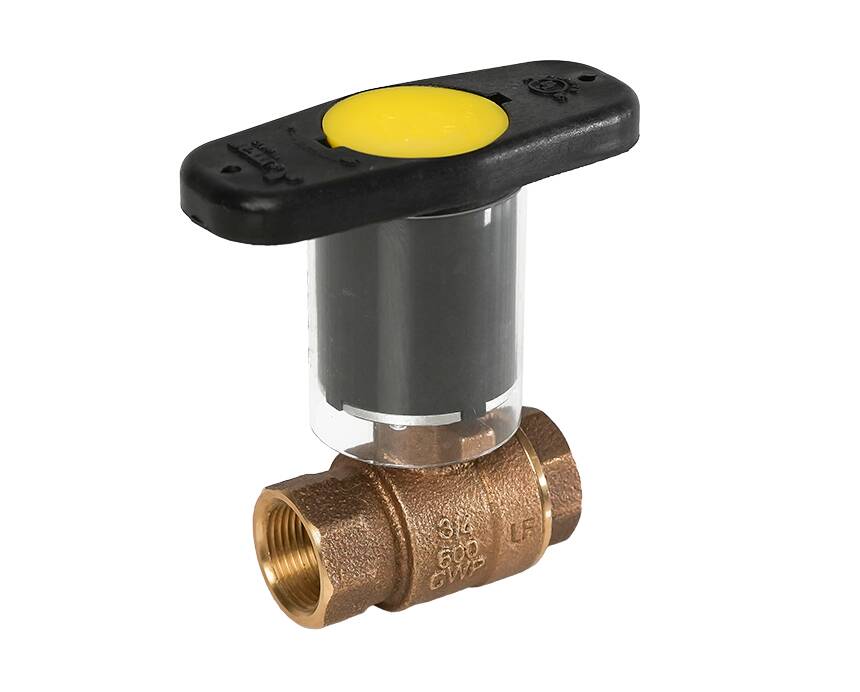

  • T-200CSSG-IH Lead Free Bronze Ball Valve with ThermalBlock Handle
    T-200CSSG-IH

    Lead Free Bronze Ball Valve, 2 Piece, Full Port, Threaded Connection, Stainless Steel Trim, Insulated Handle, 600 CWP, 150 WSP

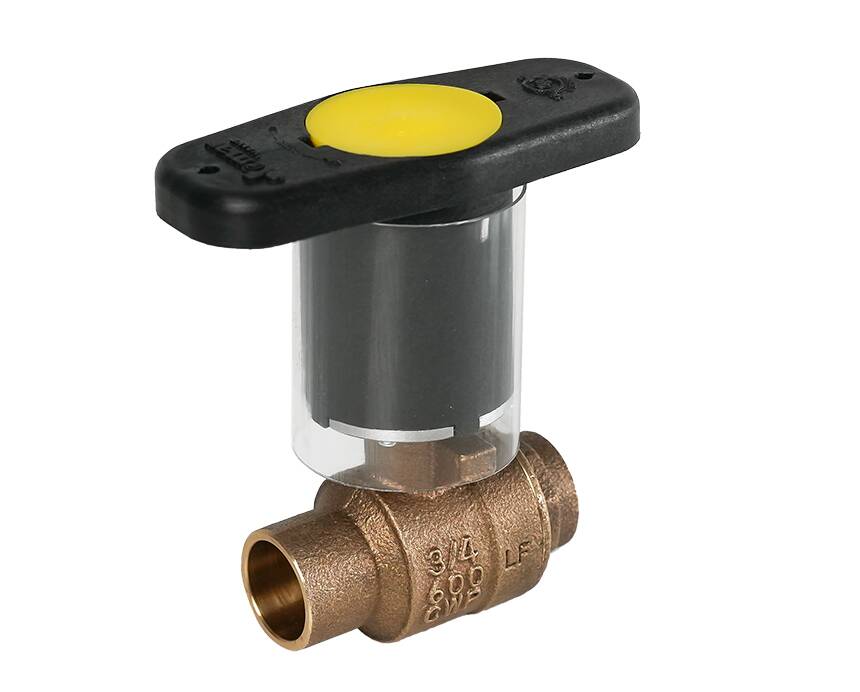

  • S-200CSSG-IH Lead Free Bronze Ball Valve with ThermalBlock Handle
    S-200CSSG-IH

    Lead Free Bronze Ball Valve, 2 Piece, Full Port, Solder Connection, Stainless Steel Trim, Insulated Handle, 600 CWP, 150 WSP

  •

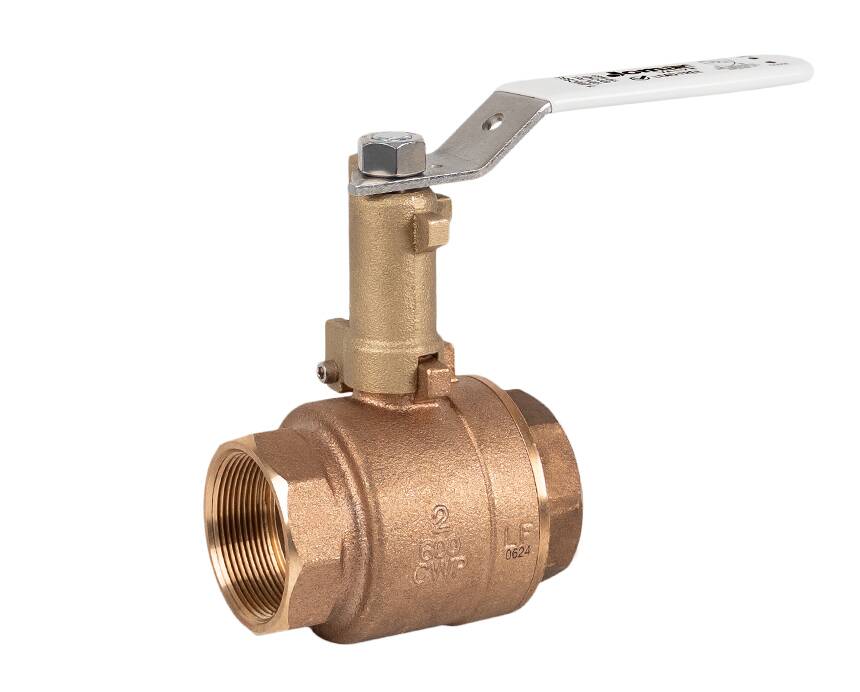

    T-200CSSG-EH

    Lead Free Bronze Ball Valve, 2 Piece, Full Port, Threaded Connection, Stainless Steel Trim, Extended Handle, 600 CWP, 150 WSP

  •

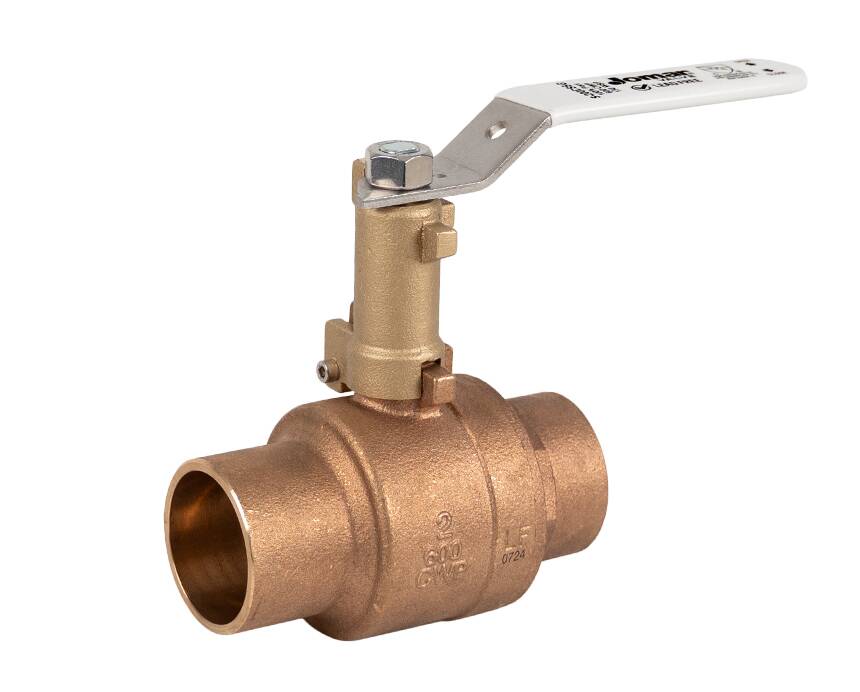

    S-200CSSG-EH
