T-CS-1000N-SS-4B

Share This Product

T-CS-1000N-SS-4B

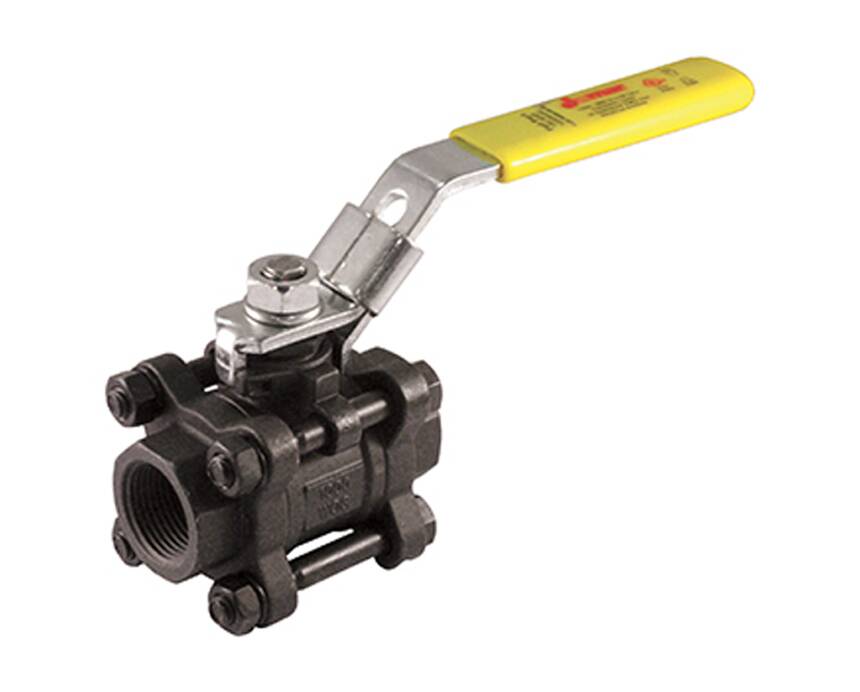

Carbon Steel Ball Valve, 3 Piece 4 Bolt, Swing Out Body, Full Port, Threaded Connection, Stainless Steel Trim, 1000 WOG

Features
  • Latch Lock Handle May be Locked in Open or Closed Position
  • 100% Leak Tested
  • 29 in-Hg Vacuum Rating
  • Wetted Surfaces Contain Less than .25% Lead Content
  • Repair Kits Available





Part No. Size Carton Weight (lbs)
500-403 1/2″ 10 14
500-404 3/4″ 10 21
500-405 1″ 8 25
500-406 1-1/4″ 5 24
500-407 1-1/2″ 5 34
500-408 2″ 2 21
  • UL Listed
    • MHKZ – Manual Valves
    • YQNZ – Compressed Gas Shut-Off Valves
    • YRBX – Flammable Liquid Shut-Off Valves
    • YRPV – Gas Shut-Off Valves
    • YSDT – LP Gas Shut-Off Valves
    • YQAR – Anhydrous Ammonia Shut-Off Valves
  • NACE Certified
  • MSS SP-110
  • ANSI B1.20.1
  • ANSI B16.11
  • Conforms to API 598
  • Buy American Act Compliant
